N2KView Vessel Monitoring and Control Software
N2KView Platinum - Server Access & Single Client Usage
Viewing, Alarms (text, email, and control), Cameras, Logging, and Switching

Whether you are interested in monitoring your vessel's systems while underway or remotely from your home or office, Maretron's N2KView software displays the information you need including engines, gensets, tanks, rudders, navigation instruments, local weather, electrical systems and more.

N2KView is completely user-configurable allowing customizable screens to your exact needs while easily switching from screen to screen for monitoring all your systems.  Digital displays, analog gauges, graphic displays, warning lights, bar graphs, all can be configured exactly how you want them to be.  You can even set the operating limits and color bands for analog gauges so you know when things are within limits and when they are not.

Once you connect a PC to the NMEA 2000® network using the Maretron USB100 gateway (Sold Separately), you can connect other PCs or handhelds (N2KView Clients) using conventional technology like Ethernet or Wi-Fi for remote viewing of things like tank levels up on deck while fueling, or for monitoring the vessel's location anywhere in the world using an Internet connection back to the boat.

Click on the following links for other screen views:

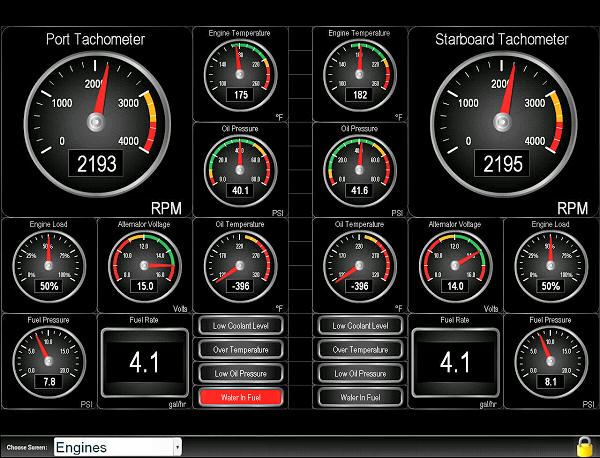

Engine Information Screen (74 KB)

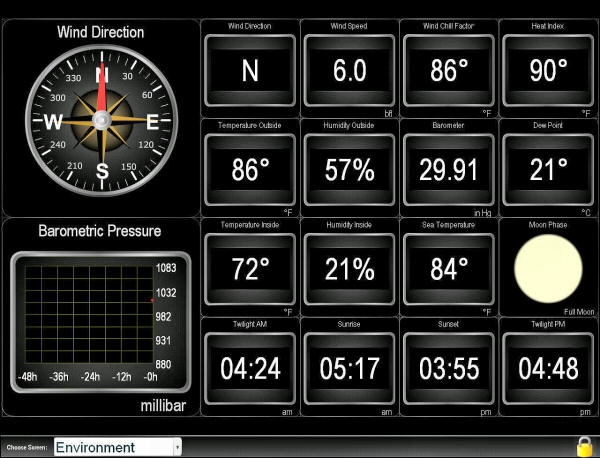

Environment Information Screen (61 KB)

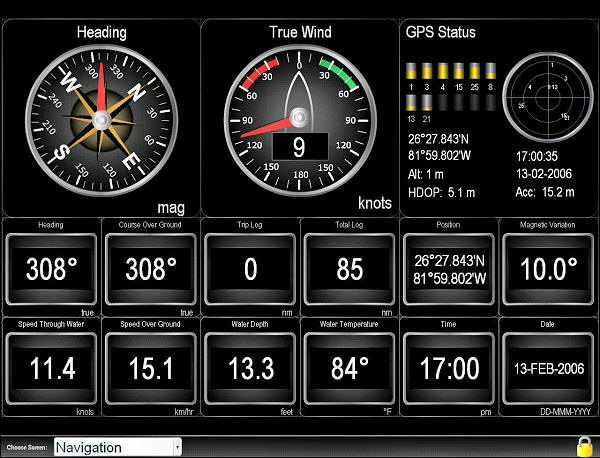

Navagation Information Screen (68 KB)

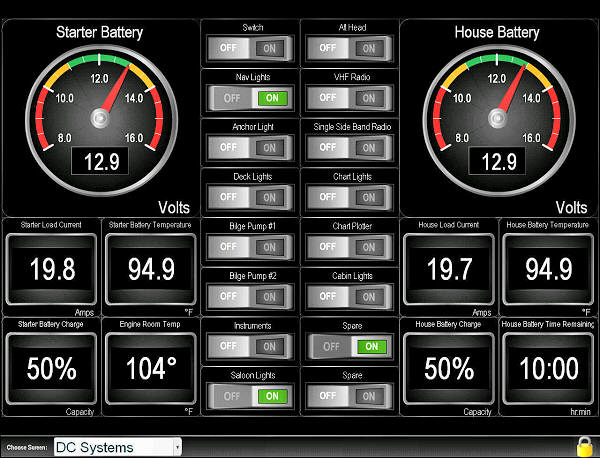

DC System Information Screen (67 KB)

Displays:
AC Power	Battery
Depth	Engine
Environment	Fuel Management
GPS	Heading
Navigation	Rudder
Speed	Tanks
Time	Transmission
Weather	Wind

The following is required to successfully run N2KView:
• Operating System: Windows XP Home Edition/Professional, or Microsoft Vista (32-bit)
• CPU: Minimum Pentium® 4 or Equivalent, Recommended Pentium® 4, 3.0 GHz
• Memory: Minimum 512 MB RAM, Recommended 1 GB RAM
• Hard Drive Space: 40 MB
• CD-ROM or DVD Drive
• Video Card: Minimum 128 MB memory, Recommended 256 MB
• Network Connection: 10BASE-T or 100BASE-TX, or 802.11a/b/g
• Display: Minimum 1024x768 Resolution, 32-Bit Color Video
• Multiple Monitor Support: Dedicated Video Cards with Minimum 64 MB memory per monitor
• Touch Screen or Mouse with Windows Compatible Driver
• Keyboard (for assigning user-defined titles to controls, entering passwords and connection information)
